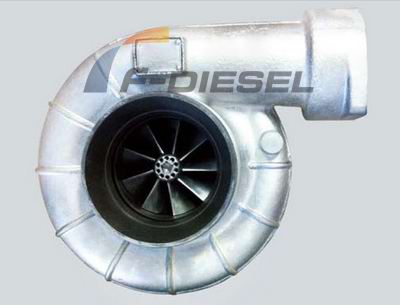

TL150 series turbo is designed and developed by F-DIESEL specially for generator unit. It has the characteristics of high pressure ratio and high flow, and it can meet the requirements of high discharge. It is applicable to the mid-to high-end requests with covering the power range of 300-800kw.
For more information, please contact us: E-Mail or Skype
MOD
|
Airflow (kg/s)
|
pressure ratio
|
Output Range(kw)
|
TL150
|
0.2~1.3
|
4.9
|
300~800
|
Standard Features
|
|
Choice of turbine housing materials to cover a wide range of temperatures.
|
High efficiency over 66%.
|
Compressor and turbine wheels selected for optimum airflow, efficiency and pressure ratio.
|
High pressure ratio capability.
|
IMO2 emission.
|
Technical Parameters
|
No. |
Name |
Unit |
Parameter Value |
1 |
Turbocharger total efficiency |
/ |
0.61 |
2 |
The highest speed |
r/min |
80000 |
3 |
The highest pressure ratio |
|
4.9 |
4 |
The maximum flow rate |
kg/s |
0.2~1.3 |
5 |
Single power range |
kW |
300~800 |
6 |
The turbine inlet temperature |
°C |
≤650 |
7 |
The turbine outlet pressure |
kPa |
≤5 |
8 |
Lubricating oil pressure |
MPa |
0.2~0.4 |
9 |
Minimum oil pressure |
MPa |
≥0.15 |
10 |
The inlet oil temperature |
°C |
≥50~70 |
11 |
Length*width*height |
mm |
370×320×300 |
12 |
quality |
kg |
60±1 |
13 |
the outlet oil pressure |
°C |
≤105 |
14 |
Lubrication oil |
/ |
40CD+ |
Conpressor Characteristic Diagram
|
