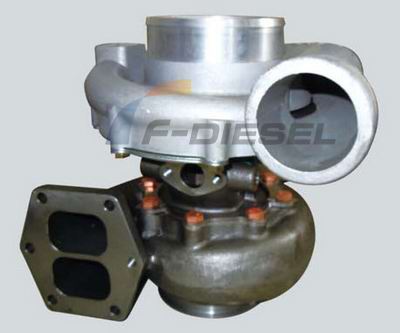

H130A Turbocharger
H130A series turbo is specially designed for vessels and generator units. It is with the advantages of compact structure, better reliability,stronger power,lower noise,parts compatibly lower emission and attractive appearance etc. It is applicable to the mid-to high-end requests with covering the power range of 200-500kw. For more information, please contact us: E-Mail or Skype
MOD
|
Airflow (kg/s)
|
pressure ratio
|
Output Range(kw)
|
H130A
|
0.1~0.9
|
2.8
|
200~500
|
Standard Features
|
|
Choice of turbine housing materials to cover a wide range of temperatures.
|
High efficiency over 66%.
|
Compressor and turbine wheels selected for optimum airflow, efficiency and pressure ratio.
|
High pressure ratio capability.
|
IMO2 emission.
|
Technical Parameters
|
No. |
Name |
Unit |
Parameter Value |
1 |
Turbocharger total efficiency |
/ |
0.61 |
2 |
The highest speed |
r/min |
65000 |
3 |
The highest pressure ratio |
|
2.8 |
4 |
The maximum flow rate |
kg/s |
0.1~0.9 |
5 |
Single power range |
kW |
200~500 |
6 |
The turbine inlet temperature |
°C |
≤650 |
7 |
The turbine outlet pressure |
kPa |
≤5 |
8 |
Lubricating oil pressure |
MPa |
0.3~0.6 |
9 |
Minimum oil pressure |
MPa |
≥0.25 |
10 |
The inlet oil temperature |
°C |
≥50~70 |
11 |
Length*width*height |
mm |
310×295×300 |
12 |
quality |
kg |
27±1<
|
